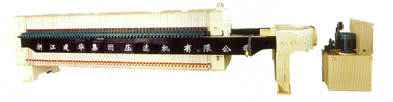

| Type 1000 recessed plate filter press |
| |
 |
Type XYJ1000 recessed plate filter press (Hydraulically controlled, mechanically pressure holded)
|
|
model |
filtering area m2 |
total volume of filtering chamber L |
external frame dimensions mm |
thickness of filter plate
mm |
number of filter chambers pcs |
thickness of filtering cake
mm |
external dimensions LxWxH
mm |
motor power kw |
work pressure in chamber Mpa |
mass of complete machine kg |
X  YJ32/1000-U  |
32 |
480 |
1000x1000 |
60 |
20 |
30 |
4145x1460x1523 |
1.5 |
1 |
4320 |
X YJ40/1000-U |
40 |
600 |
1000x1000 |
60 |
24 |
30 |
4389x1460x1523 |
1.5 |
1 |
4510 |
X YJ50/1000-U |
50 |
750 |
1000x1000 |
60 |
30 |
30 |
4755x1460x1523 |
1.5 |
1 |
4790 |
X YJ60/1000-U |
60 |
900 |
1000x1000 |
60 |
36 |
30 |
5121x1460x1523 |
1.5 |
1 |
5070 |
X YJ70/1000-U |
70 |
1050 |
1000x1000 |
60 |
42 |
30 |
5487x1460x1523 |
1.5 |
1 |
5360 |
X YJ80/1000-U |
80 |
1200 |
1000x1000 |
60 |
48 |
30 |
5853x1460x1523 |
1.5 |
1 |
5640 |
X YJ90/1000-U |
90 |
1350 |
1000x1000 |
60 |
54 |
30 |
6219x1460x1523 |
1.5 |
1 |
5920 |
X YJ100/1000-U |
100 |
1500 |
1000x1000 |
60 |
60 |
30 |
6585x1460x1523 |
1.5 |
1 |
6200 |
X YJ120/1000-U |
120 |
1800 |
1000x1000 |
60 |
72 |
30 |
7317x1460x1523 |
1.5 |
1 |
6770 | |
Type XY1000 recessed plate filter press (Hydraulically controlled, automacically pressure holded)
|
|
model |
filtering area m2 |
total volume of filtering chamber L |
external frame dimensions mm |
thickness of filter plate
mm |
number of filter chambers pcs |
thickness of filtering cake
mm |
external dimensions LxWxH
mm |
motor power kw |
work pressure in chamber Mpa |
mass of complete machine kg |
X Y32/1000-U |
32 |
480 |
1000x1000 |
60 |
20 |
30 |
3450x1540x1460 |
3 |
1 |
4240 |
X Y40/1000-U |
40 |
600 |
1000x1000 |
60 |
24 |
30 |
3694x1540x1460 |
3 |
1 |
4430 |
X Y50/1000-U |
50 |
750 |
1000x1000 |
60 |
30 |
30 |
4060x1540x1460 |
3 |
1 |
4710 |
X Y60/1000-U |
60 |
900 |
1000x1000 |
60 |
36 |
30 |
4426x1540x1460 |
3 |
1 |
5000 |
X Y70/1000-U |
70 |
1050 |
1000x1000 |
60 |
42 |
30 |
4792x1540x1460 |
3 |
1 |
5280 |
X Y80/1000-U |
80 |
1200 |
1000x1000 |
60 |
48 |
30 |
5158x1540x1460 |
3 |
1 |
5560 |
X Y90/1000-U |
90 |
1350 |
1000x1000 |
60 |
54 |
30 |
5524x1540x1460 |
3 |
1 |
5840 |
X Y100/1000-U |
100 |
1500 |
1000x1000 |
60 |
60 |
30 |
5890x1540x1460 |
3 |
1 |
6120 |
X Y120/1000-U |
120 |
1800 |
1000x1000 |
60 |
72 |
30 |
6622x1540x1460 |
3 |
1 |
6700 | |
Type XYG1000 recessed plate membrane filter press(Hydraulically controlled,automatically pressure holded)
|
|
model |
filtering area m2 |
total volume of filtering chamber L |
external frame dimensions mm |
thickness of filter plate
mm |
number of filter chambers pcs |
thickness of filtering cake
mm |
external dimensions LxWxH
mm |
motor power kw |
work pressure in chamber Mpa |
mass of complete machine kg |
X YG32/1000-U |
32 |
480 |
1000x1000 |
60 |
20 |
30 |
3450x1540x1460 |
3 |
1 |
4380 |
X YG40/1000-U |
40 |
600 |
1000x1000 |
60 |
24 |
30 |
3694x1540x1460 |
3 |
1 |
4600 |
X YG50/1000-U |
50 |
750 |
1000x1000 |
60 |
30 |
30 |
4060x1540x1460 |
3 |
1 |
4930 |
X YG60/1000-U |
60 |
900 |
1000x1000 |
60 |
36 |
30 |
4426x1540x1460 |
3 |
1 |
5260 |
X YG70/1000-U |
70 |
1050 |
1000x1000 |
60 |
42 |
30 |
4792x1540x1460 |
3 |
1 |
5580 |
X YG80/1000-U |
80 |
1200 |
1000x1000 |
60 |
48 |
30 |
5158x1540x1460 |
3 |
1 |
5900 |
X YG90/1000-U |
90 |
1350 |
1000x1000 |
60 |
54 |
30 |
5524x1540x1460 |
3 |
1 |
6230 |
X YG100/1000-U |
100 |
1500 |
1000x1000 |
60 |
60 |
30 |
5890x1540x1460 |
3 |
1 |
6550 |
X YG120/1000-U |
120 |
1800 |
1000x1000 |
60 |
72 |
30 |
6622x1540x1460 |
3 |
1 |
7220 | |
Type XZ1000 automatic recessed plate filter press(Hydraulically controlled,automatically pull plate,flexible arm discharge)
|
|
model |
filtering area m2 |
total volume of filtering chamber L |
external frame dimensions mm |
thickness of filter plate
mm |
number of filter chambers pcs |
thickness of filtering cake
mm |
external dimensions LxWxH
mm |
motor power kw |
work pressure in chamber Mpa |
mass of complete machine kg |
X Z32/1000-U |
32 |
480 |
1000x1000 |
60 |
20 |
30 |
3450x1540x1680 |
3 |
1 |
4730 |
X Z40/1000-U |
40 |
600 |
1000x1000 |
60 |
24 |
30 |
3672x1540x1680 |
3 |
1 |
5030 |
X Z50/1000-U |
50 |
750 |
1000x1000 |
60 |
30 |
30 |
4060x1540x1680 |
3 |
1 |
5470 |
X Z60/1000-U |
60 |
900 |
1000x1000 |
60 |
36 |
30 |
4426x1540x1680 |
3 |
1 |
5900 |
X Z70/1000-U |
70 |
1050 |
1000x1000 |
60 |
42 |
30 |
4792x1540x1680 |
3 |
1 |
6340 |
X Z80/1000-U |
80 |
1200 |
1000x1000 |
60 |
48 |
30 |
5158x1540x1680 |
3 |
1 |
6780 |
X Z90/1000-U |
90 |
1350 |
1000x1000 |
60 |
54 |
30 |
5524x1540x1680 |
3 |
1 |
7220 |
X Z100/1000-U |
100 |
1500 |
1000x1000 |
60 |
60 |
30 |
5890x1540x1680 |
3 |
1 |
7660 |
X Z120/1000-U |
120 |
1800 |
1000x1000 |
60 |
72 |
30 |
6622x1540x1680 |
3 |
1 |
8540 | |
Type XZG1000 automatic recessed plate membrane filter press (Hydraulically controlled, automatically pull plate)
|
|
model |
filtering area m2 |
total volume of filtering chamber L |
external frame dimensions mm |
thickness of filter plate
mm |
number of filter chambers pcs |
thickness of filtering cake
mm |
external dimensions LxWxH
mm |
motor power kw |
work pressure in chamber Mpa |
mass of complete machine kg |
X ZG32/1000-U |
32 |
480 |
1000x1000 |
60 |
20 |
30 |
3450x1540x1680 |
3 |
1 |
4880 |
X ZG40/1000-U |
40 |
600 |
1000x1000 |
60 |
24 |
30 |
3694x1540x1680 |
3 |
1 |
5200 |
X ZG50/1000-U |
50 |
750 |
1000x1000 |
60 |
30 |
30 |
4060x1540x1680 |
3 |
1 |
5690 |
X ZG60/1000-U |
60 |
900 |
1000x1000 |
60 |
36 |
30 |
4426x1540x1680 |
3 |
1 |
6160 |
X ZG70/1000-U |
70 |
1050 |
1000x1000 |
60 |
42 |
30 |
4792x1540x1680 |
3 |
1 |
6640 |
X ZG80/1000-U |
80 |
1200 |
1000x1000 |
60 |
48 |
30 |
5158x1540x1680 |
3 |
1 |
7130 |
X ZG90/1000-U |
90 |
1350 |
1000x1000 |
60 |
54 |
30 |
5524x1540x1680 |
3 |
1 |
7610 |
X ZG100/1000-U |
100 |
1500 |
1000x1000 |
60 |
60 |
30 |
5890x1540x1680 |
3 |
1 |
8090 |
X ZG120/1000-U |
120 |
1800 |
1000x1000 |
60 |
72 |
30 |
6622x1540x1680 |
3 |
1 |
9060 | |
|
| |
|
|
| |
|
| |
|
|
|
|
