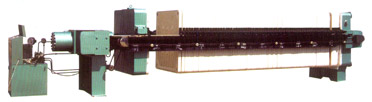

Type 2000 recessed plate filter press

Type XY2000 recessed plate filter press (Hydraulically controlled ,automacically pressure holded)

model	filtering area m2	total volume of filtering chamber L	external frame dimensions mm	thickness of filter plate mm	number of filter chambers pcs	thickness of filtering cake mm	external dimensions LxWxH mm	motor power kw	work pressure in chamber Mpa	mass of complete machine kg
XY560/2000-U	560	9800	2000X2000	80	80	35	10582X2620X2420	3	1	35000
XY630/2000-U	630	11025	2000X2000	80	90	35	11392X2620X2420	3	1	37500
XY700/2000-U	700	12250	2000X2000	80	100	35	12202X2620X2420	3	1	40000
XY770/2000-U	770	13475	2000X2000	80	110	35	13012X2620X2420	3	1	42500
XY840/2000-U	840	14700	2000X2000	80	120	35	13822X2620X2420	3	1	45000
XY910/2000-U	910	15925	2000X2000	80	130	35	14632X2620X2420	3	1	47500
XY980/2000-U	980	17150	2000X2000	80	140	35	15442X2620X2420	3	1	50000
XY1050/2000-U	1050	18375	2000X2000	80	150	35	16252X2620X2420	3	1	52500
XY1120/2000-U	1120	19600	2000X2000	80	160	35	17062X2620X2420	3	1	55000
XY1190/2000-U	1190	20825	2000X2000	80	170	35	17870X2620X2420	3	1	57500

Type XYG2000 recessed plate membrane filter press (Hydraulically controlled, automatically pull plate)

model	filtering area m2	total volume of filtering chamber L	external frame dimensions mm	thickness of filter plate mm	number of filter chambers pcs	thickness of filtering cake mm	external dimensions LxWxH mm	motor power kw	work pressure in chamber Mpa	mass of complete machine kg
XYG560/2000-U	560	9800	2000X2000	80	80	35	11140X2620X2420	3	1	39000
XYG630/2000-U	630	11025	2000X2000	80	90	35	12030X2620X2420	3	1	42000
XYG700/2000-U	700	12250	2000X2000	80	100	35	12930X2620X2420	3	1	45000
XYG770/2000-U	770	13475	2000X2000	80	110	35	13810X2620X2420	3	1	48000
XYG840/2000-U	840	14700	2000X2000	80	120	35	14700X2620X2420	3	1	51000
XYG910/2000-U	910	15925	2000X2000	80	130	35	15590X2620X2420	3	1	54000
XYG980/2000-U	980	17150	2000X2000	80	140	35	16480X2620X2420	3	1	57000
XYG1050/2000-U	1050	18375	2000X2000	80	150	35	17370X2620X2420	3	1	60000
XYG1120/2000-U	1120	19600	2000X2000	80	160	35	18260X2620X2420	3	1	63000
XYG1190/2000-U	1190	20825	2000X2000	80	170	35	19150X2620X2420	3	1	66000

Type XZ2000 automatic recessed plate filter press (Hydraulically controlled, automatically pull plate)

model	filtering area m2	total volume of filtering chamber L	external frame dimensions mm	thickness of filter plate mm	number of filter chambers pcs	thickness of filtering cake mm	external dimensions LxWxH mm	motor power kw	work pressure in chamber Mpa	mass of complete machine kg
XZ560/2000-U	560	9800	2000X2000	80	80	35	10582X2620X2420	3	1	35270
XZ630/2000-U	630	11025	2000X2000	80	90	35	11392X2620X2420	3	1	37790
XZ700/2000-U	700	12250	2000X2000	80	100	35	12202X2620X2420	3	1	40320
XZ770/2000-U	770	13475	2000X2000	80	110	35	13012X2620X2420	3	1	42840
XZ840/2000-U	840	14700	2000X2000	80	120	35	13822X2620X2420	3	1	45360
XZ910/2000-U	910	15925	2000X2000	80	130	35	14632X2620X2420	3	1	47890
XZ980/2000-U	980	17150	2000X2000	80	140	35	15442X2620X2420	3	1	50040
XZ1050/2000-U	1050	18375	2000X2000	80	150	35	16252X2620X2420	3	1	52930
XZ1120/2000-U	1120	19600	2000X2000	80	160	35	17062X2620X2420	3	1	55450
XZ1190/2000-U	1190	20825	2000X2000	80	170	35	17872X2620X2420	3	1	57970

Type XZG2000 automatic recessed plate membrane filter press (Hydraulically controlled, automatically pull plate)

model	filtering area m2	total volume of filtering chamber L	external frame dimensions mm	thickness of filter plate mm	number of filter chambers pcs	thickness of filtering cake mm	external dimensions LxWxH mm	motor power kw	work pressure in chamber Mpa	mass of complete machine kg
XZG560/2000-U	560	9800	2000X2000	80	80	35	11140x2620x2420X	3	1	39270
XZG630/2000-U	630	11025	2000X2000	80	90	35	12030X2620X2420	3	1	42290
XZG700/2000-U	700	12250	2000X2000	80	100	35	12930X2620X2420	3	1	45320
XZG770/2000-U	770	13475	2000X2000	80	110	35	13810X2620X2420	3	1	38340
XZG840/2000-U	840	14700	2000X2000	80	120	35	14700X2620X2420	3	1	51360
XZG910/2000-U	910	15925	2000X2000	80	130	35	15590X2620X2420	3	1	54390
XZG980/2000-U	980	17150	2000X2000	80	140	35	16480X2620X2420	3	1	57390
XZG1050/2000-U	1050	18375	2000X2000	80	150	35	17370X2620X2420	3	1	60430
XZG1120/2000-U	1120	19600	2000X2000	80	160	35	18260X2620X2420	3	1	63450
XZG1190/2000-U	1190	20825	2000X2000	80	170	35	19150x2620X2420	3	1	66470
